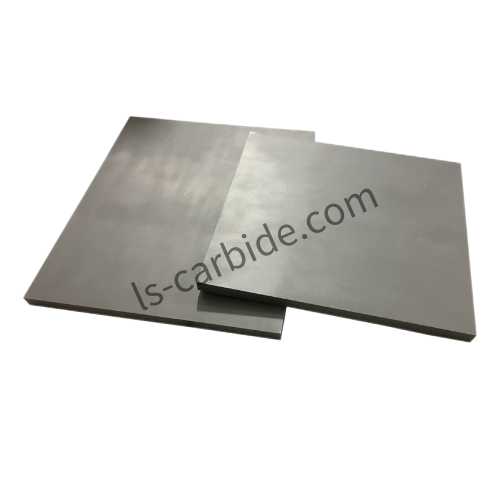

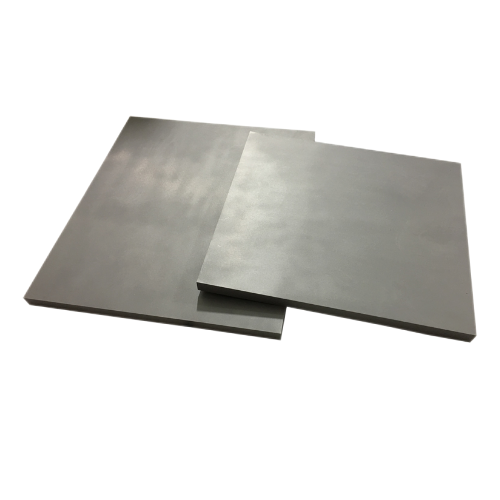

Cemented carbide plate
Carbide plate is often used in hardware and standard stamping dies because of its good durability and impact resistance. Carbide plates are widely used in the electronics industry, motor rotors, stators, LED lead frames, EI silicon steel sheets, etc. It has excellent properties such as high hardness, good wear resistance, toughness, heat resistance, corrosion resistance, etc. Especially the high hardness and wear resistance of cemented carbide plates. Carbide plates can also be used to make various metals, such as knives, metal cutters, shears, wear-resistant tools, etc. It can also be screened for thermal insulation using an internal electric furnace.
Typical Tungsten Carbide Grade Mechanical Properties
| Grade | Main Chemical Composition（wt%） | Modulus Of Elasticity （KN/m㎡） | Compressive Strength （N/m㎡） | Thermal Conductivity （W/m-K） | Coefficient Of Thermal Expansion | ||||
| WC | Co | Ni | TiC | Mo | |||||
| YG6 | 94 | 6 | - | - | - | 630 | 5500 | 100 | 5.5×10-6/ K |
| YG8 | 92 | 8 | - | - | - | 590 | 5200 | 90 | 5.8×10-6/ K |
| YG15 | 85 | 15 | - | - | - | 530 | 4600 | 70 | 6.2×10-6/ K |
| N100 | 94 | - | 6 | - | - | 600 | 4500 | 90 | 5.3×10-6/ K |
| N200 | 92 | - | 8 | - | - | 570 | 4300 | 80 | 5.2×10-6/ K |
| TIP | 81.5 | 8.5 | 10 | - | 530 | 4700 | 70 | 5.6×10-6 /K | |
| QT200 | 25 | - | 15 | 52 | 8 | 400 | 3400 | 25 | 7.8×10-6 /K |
Please contact with us if you need cemented carbide plates,cutomized drawings are acceptable.
