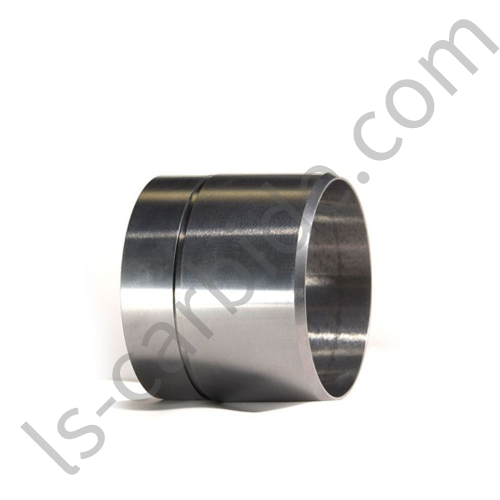

Our tungsten carbide bushing has a low coefficient of friction compared to traditional bushings. This means it reduces friction and wear, which extends the life of the equipment and improves efficiency. The low coefficient of friction also reduces energy consumption and lowers equipment maintenance costs.
Tungsten carbide bushings are widely used in oil, chemical, metallurgy, machinery manufacturing and other industries to provide stable bearing support and reduce friction, thus extending the service life of the equipment and improving production efficiency.
Characteristics of tungsten carbide bushings:
1. very high melting point, can reach 3400°C or more.
2. Very high hardness, up to HRA90 and above.
3. Excellent performance in friction and wear environments.
4. not easily eroded by corrosive media such as acids, alkalis and solvents.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
