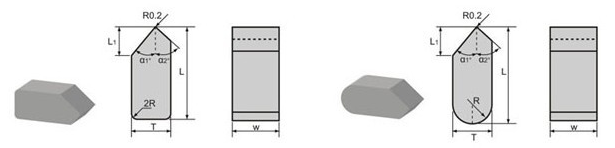

| Type | L(mm) | T(mm) | a1° | a2° | T1(mm) | R(mm) |
| PA552010-W | 5.50 | 2.00 | 39.0 | 80.0 | 1.23 | 1.00 |
| PA602211-W | 6.00 | 2.20 | 15.0 | 55.0 | 2.80 | 1.10 |
| PA652010-W | 6.50 | 2.00 | 40.0 | 40.0 | 1.37 | 1.00 |
| PA652211-W | 6.50 | 2.20 | 15.0 | 55.0 | 2.70 | 1.10 |
| PA652211A-W | 6.50 | 2.20 | 25.0 | 45.0 | 2.70 | 1.10 |
| PA6522505-W | 6.50 | 2.25 | 30.0 | 30.0 | 2.75 | 0.50 |
| PA6522509-W | 6.50 | 2.25 | 30.0 | 45.0 | 2.25 | 0.90 |
| PA6523115-W | 6.50 | 2.30 | 23.2 | 55.0 | 2.92 | 1.15 |
| PA662010-W | 6.60 | 2.00 | 30.0 | 50.0 | 1.56 | 1.00 |
| PA702304-W | 7.00 | 2.30 | 40.0 | 42.0 | 2.15 | 0.40 |
| PA964824-W | 9.60 | 4.80 | 21.0 | 53.0 | 3.60 | 2.40 |
| PA995010-W | 9.90 | 5.00 | 30.0 | 45.0 | 3.34 | 1.00 |
