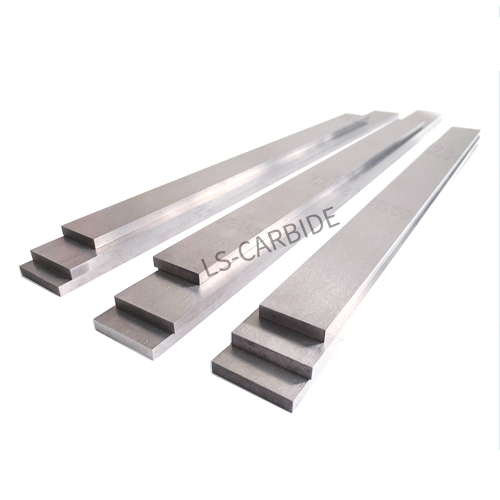

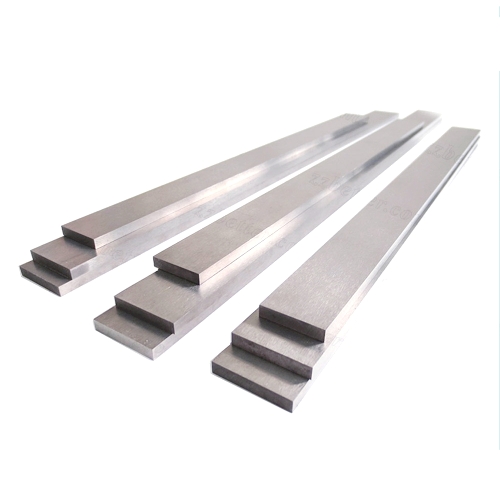

Carbide plates are regular and standard tungsten carbide products Langsun Carbide produced.Different performances can be provided.The material spec. is not including all
the material grades.Please contact with us if you need more information.
Cobalt Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) |
YG6 | 6 | 14.8 | 90.0 | 1520 |
YG6X | 6 | 14.9 | 91.0 | 1450 |
YG6A | 6 | 14.9 | 92.0 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88.0 | 1810 |
YG15 | 15 | 14.0 | 87.0 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
