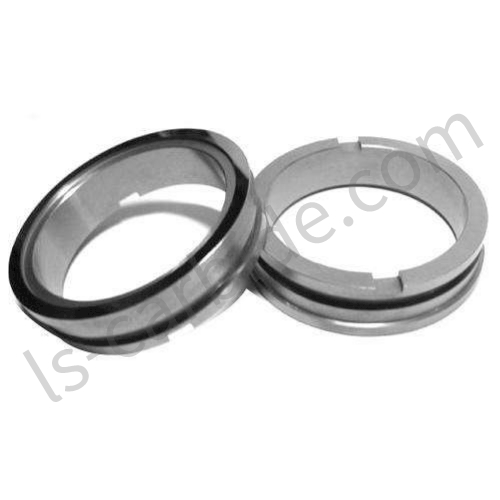

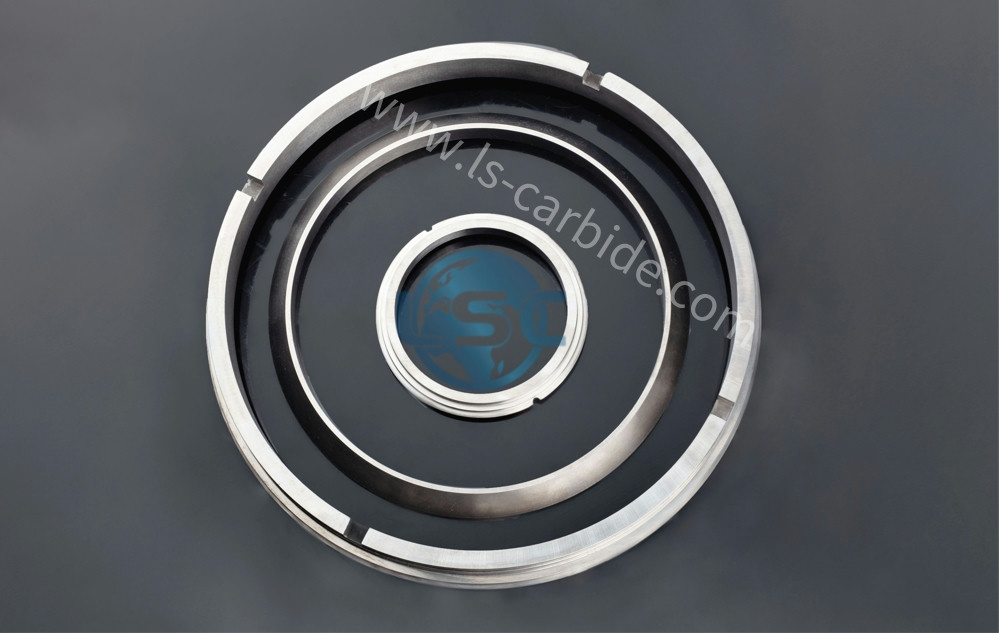

The mechanical seal ring is an important component of the mechanical seal. The sealing ring plays a decisive role in the performance and life of the mechanical seal. The hardness of the sealing ring is one of the criteria for checking whether a sealing ring is qualified, the self-lubrication of the sealing ring should also be better, good lubricity cannot damage the sealing end face. Compared with other materials, tungsten carbide ring has better hardness and good corrosion resistance, so tungsten carbide sealing rings are widely used in many other sealing industries such as oil and gas. The material covers WC-Co alloy, WC-Ni alloy, WC-Ni/Co alloy etc...
Langsun Carbide is a company specializing in processing tungsten carbide，located in Ningbo, China. The company has been established for 10 years. The precipitation of time also makes our processing more precise and the product quality better.In the exploration again and again. Even if the processing of tungsten carbide is so difficult, we seem to be integrated with tungsten carbide. The products made are of excellent quality and fine workmanship, and are well received by the industry. Fine craftsmanship also makes the service life of the product longer and improves the cost performance. Mechanical seal rings are our hot selling products, and many oil exploration companies are our long-term partners. The cooperation again and again is enough to show our reputation in the industry.
Why choose ourTungsten Carbide ring
Highlight
1.Raw material production, guaranteed performance.
2.Small dimensional tolerance, strong sealing.
3.High wear resistance, high corrosion resistance.
4.Products can be customized according to user needs.
Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
