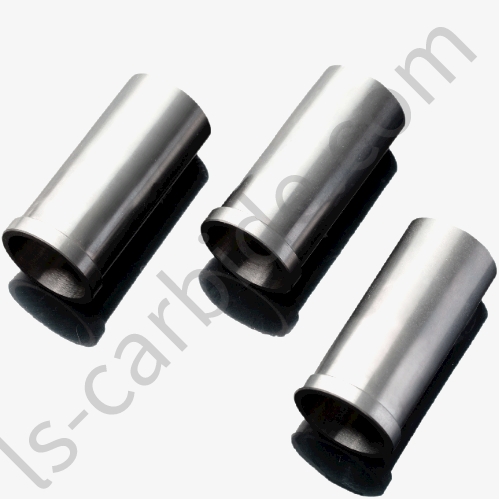

Tungsten carbide bushingsare used in a wide range of applications, in valve applications, it is used as a basic component for sealing, in bearing applications, the use of bushings can protect the bearings and reduce bearing wear. And carbide bushings has many excellent properties...
Machining of tungsten carbide is very difficult，LangSun Carbide shoulders the heavy responsibility，continuous supply of cemented carbide bushings to customers all over the world.We have a high reputation in the oil and gas industry for our excellent service and meticulous quality.In order to improve the precision of the product and prolong the service life of Tungsten Carbide Bushing，we have high requirements on products and workers, and try our best to minimize the errors between products and drawings.
Service
pre-sale service:
1.Meet the needs of customers and give professional advice.
2.Perfectly customize products according to the drawings given by customers.
After-sale service:
1.If there is a problem with the product during the warranty period, it can be replaced in time.
2.Answer any questions customers have.
Highlight
1.High wear resistance, high corrosion resistance.
2.High flexural strength.
3.100% raw material.
4.Customized according to customer requirements.
Application:
Tungsten carbide bushings are used in a wide range of applications.Tungsten carbide bushings are often used in water pump,oil pump and other pumps,especially used for high pressure or corrosion resistance pumps.
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
