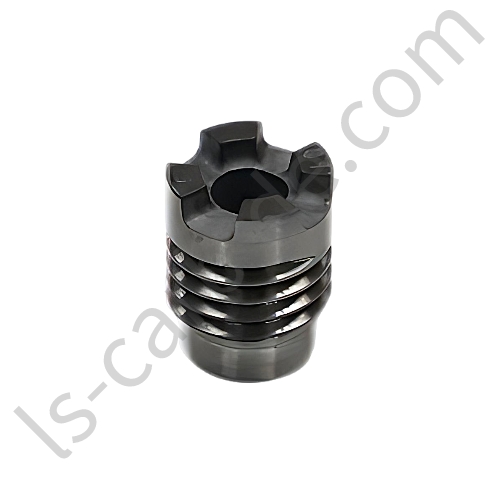

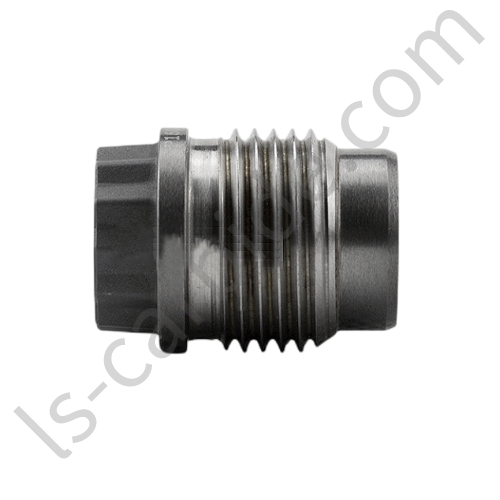

Tungsten carbide sandblasting nozzle is widely used in various sand blasting processes, including metal surface treatment, cleaning, decontamination and painting. It can be used to remove oxidized layer, stains and coatings on the surface, improve surface roughness and increase adhesion.
Langsun Carbide can customize tungsten carbide nozzles according to customers' requirements and drawings, and we can manufacture tungsten carbide sand blasting nozzles of any shapes, sizes and orifices. We can ensure that the tungsten carbide nozzles manufactured by Langsun Carbide can meet the requirements of customers' sand blasting process and improve the sand blasting effect, so that the sand blasting can be more accurate and efficient.
Advantages of tungsten carbide blasting nozzles:
Tungsten carbide nozzles have high hardness and abrasion resistance and can be used in high speed blasting process.
Tungsten carbide blasting nozzles are resistant to corrosion by acids, alkalis and other chemicals, and are suitable for use with a variety of different blasting media.
Langsun Carbide can accurately machine and manufacture tungsten carbide blasting nozzles according to customers' needs, ensuring precision and consistency in the blasting process.
The tungsten carbide blasting nozzles are capable of generating a high-speed blast stream to improve the blasting effect and clean the dirt and oxidized layer on the surface of the workpiece.
Tungsten carbide material specification | |||||
Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
