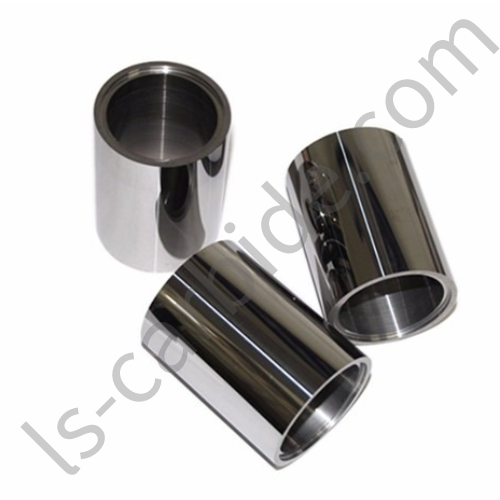

Lansgun Carbide has rich experience in manufacturing tungsten carbide bushings, and we can manufacture all types of tungsten carbide bushings. Whether it's drill bushings, fixed bushings, threaded bushings, etc., we can manufacture them for you.
1. Tungsten carbide bushing can effectively reduce friction, is the basic material in the friction material
2. Tungsten carbide bushings are widely used in bearing applications for their stabilizing and friction-reducing properties.
3. Langsun Carbide bushings are used in industries that require high performance bushings.
Advantages of Tungsten Carbide Bushing:
1. High hardness
2. Corrosion resistance, wear resistance
3. High temperature stability
4. High bending strength
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
