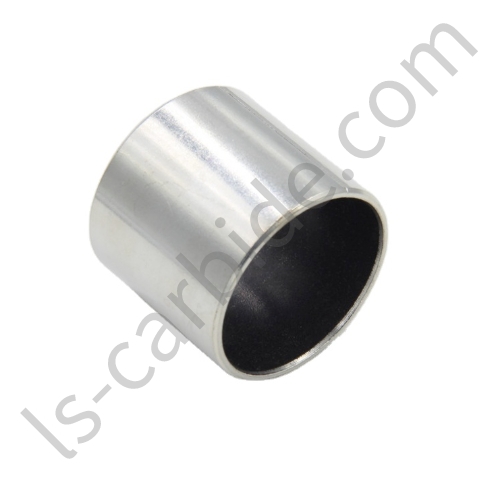

Langsun Carbide has been on the road to providing a complete range of bushings for oil and gas applications. We customize tungsten carbide sleeves with precise dimensions for a wide range of harsh and demanding applications.
We use advanced multi-processing technology to process tungsten carbide bushings, which are stronger and can withstand long-time load operation, and will not stop working even if they come into contact with corrosive substances. It can be widely used in all kinds of pumps and is the best choice for oil and gas industry.
Advantages of tungsten carbide bushings:
* High strength, high toughness
* Longer service life and wear resistance
* Good fixation
* Excellent friction reduction
* Withstands all types of corrosion
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
