Langsun Carbide provides customers from all over the world with high quality tungsten carbide products with extremely high hardness and wear resistance. No matter how harsh the environment, no matter how long the use, the original performance and shape of the product can be maintained.

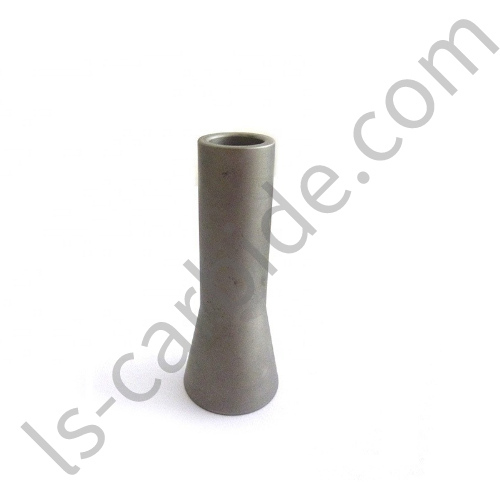

In nozzle applications, the size of the nozzle hole determines the accuracy and efficiency of spraying, and if the nozzle cavity is worn out, the hardness and efficiency of spraying will be seriously affected. With tungsten carbide best nozzles supplied by Langsun Carbide, there is no need to worry about this problem. Tungsten carbide nozzles are extremely hard and wear-resistant, so that the nozzle holes can maintain their original accuracy even after a long period of use.
Characteristics of tungsten carbide nozzles:
- Excellent wear and corrosion resistance.
- Good stability and durability.
- Maintains high accuracy and dimensional stability.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
