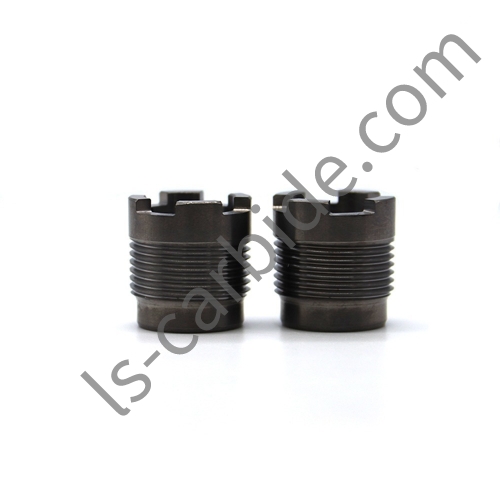

A tungsten carbide nozzle is a specialized component used in a variety of industrial processes to control the flow, dispersion, and direction of fluids, gases, or abrasive materials. These nozzles are crafted from tungsten carbide, a composite material of tungsten carbide particles embedded within a metal binder, typically cobalt. Tungsten carbide nozzles are highly regarded for their exceptional hardness, wear resistance, and ability to withstand harsh conditions.
Features of Tungsten Carbide Nozzle：
1. 100% high-quality tungsten carbide raw materials for manufacturing nozzles
2. Extremely high hardness, excellent wear resistance
3. Precise control of fluid flow, dispersion and spray pattern
4. It can still maintain its mechanical properties under high temperature
5. Chemically inert, resistant to corrosion by various chemicals and liquids
6. Longer service life and more cost-effective
Application of Tungsten Carbide Nozzle：
Abrasive Blasting: Tungsten carbide sandblasting nozzles are used in sandblasting and abrasive blasting, where they direct high-speed abrasive particles for cleaning, surface preparation, and other tasks.
Waterjet Cutting: These nozzles are vital in waterjet cutting machines, which use high-pressure water mixed with abrasives to cut through materials like metal, stone, and composites.
Spray Coating: Tungsten carbide nozzles are used in spray coating applications to achieve even and controlled deposition of paints, coatings, and finishes in industries like automotive and manufacturing.
Cooling and Lubrication: Industries such as metalworking and machining use tungsten carbide nozzles to deliver cooling fluids or lubricants precisely to cutting zones.
Chemical Processing: These nozzles play a role in chemical processing by enabling controlled spraying of chemicals, catalysts, or reactive solutions.
Oil and Gas Industry: They are utilized in drilling, well maintenance, and hydraulic fracturing (fracking) for the oil and gas industry.
Automotive Manufacturing: Tungsten carbide nozzles are employed for applications like rust-proofing, undercoating, and painting in the automotive industry.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
Our advantage: There are many sizes and types of products to choose from, and we can also provide products to customers according to their drawings and requirements. So we can manufacture nozzles of all types and shapes, including 3D printing nozzles, petroleum nozzles, sandblasting nozzles, threaded nozzles, standard nozzles and extended nozzles. Precisely manufactured to achieve nozzle position and placement, increased flow rates and reduced pressure loss. Our products have been exported to the United States, Germany, Italy, Russia, South America and other countries. The product quality is excellent and the price is competitive. Our hard working attitude has been recognized by our customers. We hope to establish new business relationships with new clients.
