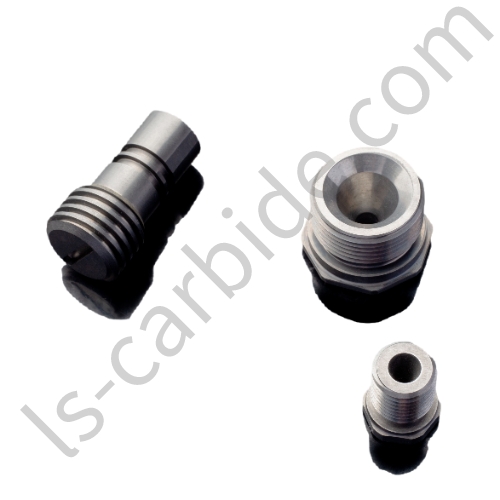

In directional drilling operations, hydraulic efficiency determines 30% of PDC bit performance. As drilling fluids accelerate through nozzles at 100-150 m/s, they cool cutters, evacuate cuttings, and fracture rock. Standard nozzles erode rapidly in abrasive formations, causing flow deviations that increase cutter temperatures by 200-300°C and reduce ROP by 25%. Langsun Carbide’s tungsten carbide nozzles solve this through material science and precision engineering.
| Property | Steel Nozzle | Ceramic Nozzle | Langsun Carbide |
|---|---|---|---|
| Hardness (HV30) | 650 | 1,600 | 1,500-1,900 |
| Erosion Rate (mm³/h)* | 0.35 | 0.12 | 0.03-0.05 |
| Max Temp Stability | 400°C | 800°C | 540°C |
| Thermal Shock Cycles | 50 | 200 | 500+ |
* ASTM G76 test: 20% SiO₂ slurry @ 60 m/s
| Parameter | Competitor Nozzle | Langsun Carbide Nozzle | Improvement |
|---|---|---|---|
| Avg. Cutter Temp | 480°C | 375°C | 22% ↓ |
| Bit Life | 185 hours | 290 hours | 57% ↑ |
| ROP in Sandstone | 52 ft/hr | 68 ft/hr | 30% ↑ |
| GPM @ 3,000 psi | 580 | 620 | 7% ↑ |
PDC drill bit nozzles are crucial in PDC drilling, providing efficient fluid delivery and enhancing drilling performance. They are widely used in:
