Material composition:
Tungsten carbide material specification
Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |

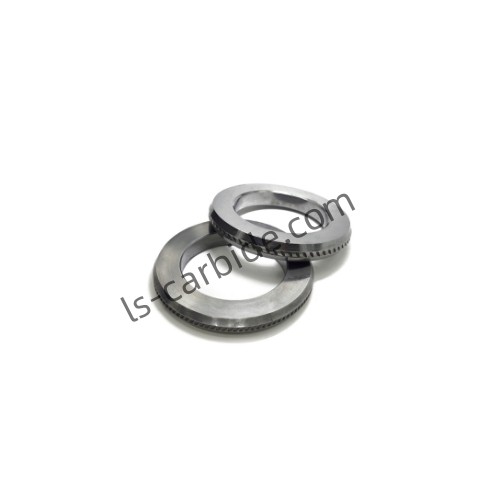

The sealing ring has high requirements on hardness and friction resistance, so it has high requirements on the composition ratio, the quality of raw materials, and the performance of finished products produced by raw materials with different particle sizes are also different. In addition, when the shaft is in operation, it needs a sealing system to reduce the entry of external impurities, so as to ensure the normal operation of the equipment. Finally, The Sealing Ring must maintain its function in various environments, For example, under high temperature conditions, it is necessary to ensure that the size of the product produced meets the customer's requirements. To sum up, the quality of the sealing ring directly affects the quality of the equipment used. Our company has produced countless sealing rings in decades of production. Please believe that we can produce tungsten carbide products that best meet your requirements
Highlights:
1. Strong wear resistance and pressure resistance, able to adapt to any environment in acid removal environment
2. It can be customized according to customer requirements
3. We have sealing rings with various grades of adhesive
4. Senior experts' assurance of product quality
Advantages:
The advantages of Tungsten Carbide Ring are obvious. This material has excellent hardness and wear resistance, so it is the first choice among many materials. As the shaft tells the rotation, the wear and deformation of Carbide ring caused by high pressure or high temperature will happen sooner or later. However, compared with other materials, the service life and efficiency of tungsten carbide material is far greater than theirs.
Application indurstry:
Oil extraction industry, drilling industry, various pumps.
Service:
If the customer is unsure which grade of material is the best, we can provide the customer with the most suitable product solution. In addition, if you have any questions after receiving the goods, please feel free to contact us.
