Oil Used Customizable Tungsten Carbide Nozzle

  • material Tungsten Carbide
  • brand_name OEM/LANGSUN
  • place_of_origin China
  • minimun_order_quantity 10
  • supply_ability 10000 PCS/MONTH
  • payment_terms L/C,T/T,Western Union
  • certficate ISO9001

Manufactured from tungsten carbide known for its exceptional hardness and durability, this nozzle ensures long life and consistent performance in the most demanding conditions.

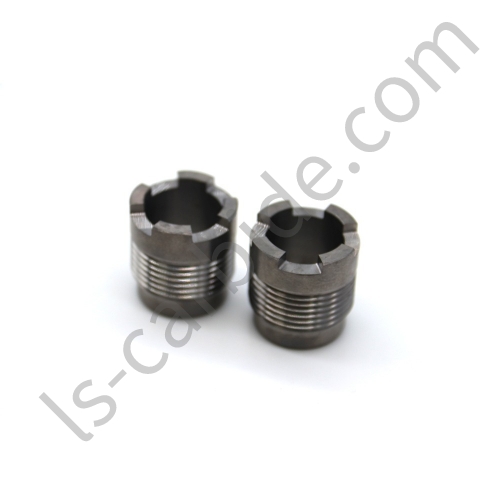

Oil Used Customizable Tungsten Carbide Nozzle.jpeg


Features of Tungsten Carbide Nozzle:

1. Precise fluid flow control

2. Long service life and reduce cost

3. Can be applied to a variety of applications

4. High hardness, high wear resistance, high corrosion resistance

5. OEM customization, sample provision, small order acceptance, professional technical support

6. Various sizes and types can be customized


Application of Tungsten Carbide Nozzles:

  • Precision Cutting and Machining: The superior hardness and wear resistance of tungsten carbide enable high-precision material removal for intricate designs and smooth finishes.

  • Coatings & Finishes: Our tungsten carbide nozzles excel at providing controlled deposition of materials, from protective coatings to decorative finishes, the nozzles ensure uniform and effective coverage.

  • Thermal Spray Technology: Industries employing thermal spray technology benefit from the ability of tungsten carbide nozzles to deliver fine powders with the highest precision.

  • Additive Manufacturing: In the fields of 3D printing and additive manufacturing, our tungsten carbide 3D printing nozzles provide superior material extrusion control.

  • Abrasive Dispersion: For applications involving abrasives, such as sandblasting and abrasive cleaning, the durability and wear resistance of tungsten carbide sandblasting nozzles ensure consistent performance over time.



Tungsten carbide material specification
GradeBinder (Wt %)CobaltDensity (g/cm3)Hardness (HRA)TRS (>N/mm²)Grain Size(μm)
YG65.8-6.314.6-15.089.5-9118000.8-2.0
YG6X5.8-6.314.4-14.790.5-91.516500.6-1.0
YG87.5-8.214.4-14.789.0-90.522001.0-1.5
YG1111.0-11.514.2-14.487.0-88.528001.0-2.0
YG11C11.0-11.514.2-14.486.0-88.030001.0-2.5
YG1514.5-1513.9-14.086.0-88.033001.0-2.0
YG2020.0-20.513.2-13.584.0-85.034001.0-2.0
YG20C20.0-20.513.2-13.583.0-85.036001.0-2.5
K05VF4.5-5.014.6-15.092.5-93.015000.6-1.0
K10VF5.5-6.214.5-14.791.5-92.515500.6-1.0
K20VF7.5-8.014.5-14.790.5-91.518000.6-1.0
GradeBinder (Wt %)NickelDensity (g/cm3)Hardness (HRA)TRS (>N/mm²)Grain Size(μm)
YN65.5-6.214.6-15.089.5-90.518000.8-2.0
YN6X5.9-6.514.5-14.989.4-9117500.8-1.8
YN6A5.9-6.514.5-14.889.5-91.518500.8-1.8
YN76.8-7.214.4-14.889.0-90.019000.8-1.6
YN87.8-8.314.5-14.889.0-90.022000.8-2.0
YN1211.5-12.214.0-14.487.5-88.526000.8-2.0
YN1514.5-15.213.7-14.286.5-88.028000.6-1.5
