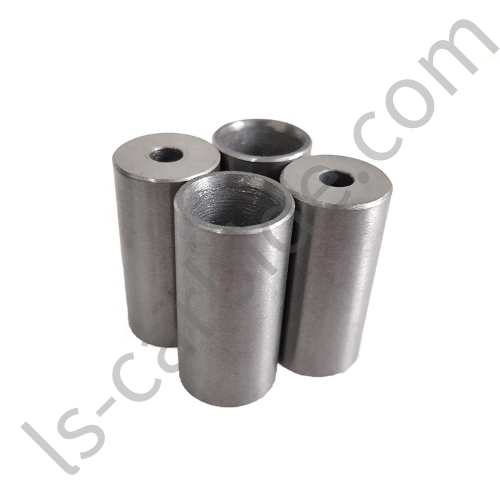

Tungsten carbide nozzles are known for their superior spraying results. Its ability to provide efficient and precise spraying makes it the preferred choice for a variety of industrial applications. Whether in metalworking, chemical production or other areas, tungsten carbide jet nozzles are able to consistently deliver a precise jet stream that ensures a smooth process.
Excellent wear resistance and high temperature stability enable them to be used for a long time in harsh environments without frequent replacement. Whether in fine spraying, sandblasting or other blasting applications, tungsten carbide nozzlesare able to show their excellent spraying results!
Features of Tungsten Carbide Nozzle:
1. precise fluid spraying.
2. High orifice accuracy and tight tolerances.
3. excellent corrosion and heat resistance.
4. Good abrasion resistance.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
