Cobalt Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) |
YG6 | 6 | 14.8 | 90.0 | 1520 |
YG6X | 6 | 14.9 | 91.0 | 1450 |
YG6A | 6 | 14.9 | 92.0 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88.0 | 1810 |
YG15 | 15 | 14.0 | 87.0 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
Value:

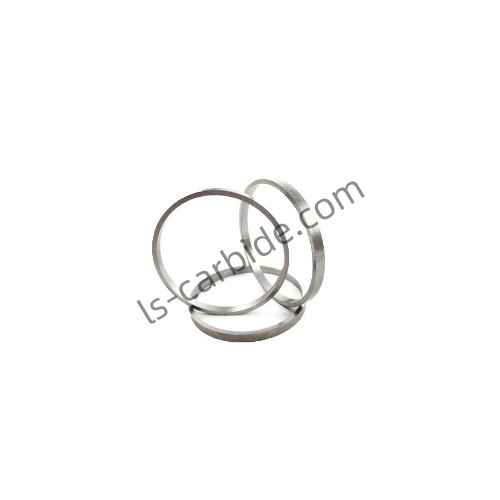

The main purpose of rotating ring is to protect the shaft. Because the shaft needs to be rotated highly in many mechanical equipment, high strength friction may cause the service life of the shaft to decline. Ring is needed to reduce the friction of other parts on the shaft. In terms of processing difficulty, the drawings of the rotating Tungsten Carbide Ring are not complex. And any carbide product has different requirements for the composition ratio. We match according to the composition required by customers, with the support of experts and precision equipment, and the quality of the final product is guaranteed
Highlights:
1.High wear resistance and long service life.
2. Superior corrosivity
3. It can be customized according to customers' needs
4. 100% pure raw materials
Advantages:
Carbide Ring has extremely strong hardness and wear resistance So when it comes to protecting the shaft, most people in the industry will think of ring. However it is possible that because the price of tungsten carbide is higher than that of ordinary materials, many customers will still choose other materials. We can not ignore that the cost performance of Tungsten Carbide is unmatched by other steel or silicon materials. In addition, our company adheres to the concept of quality assurance, even if the proportion required by customers is very tricky. We will also try our best to make good products.
Application indurstry:
Oil extraction industry, drilling industry, various pumps.
Service:
If the customer is unsure which grade of material is the best, we can provide the customer with the most suitable product solution. In addition, if you have any questions after receiving the goods, please feel free to contact us.
