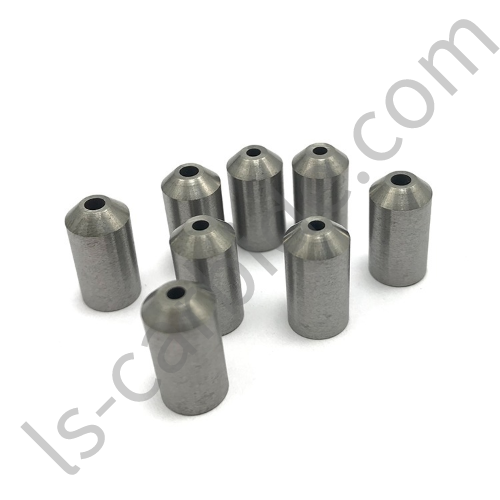

Our tungsten carbide nozzles are available in a wide range of sizes to meet different application requirements. Whether you are spraying fine detail or large areas, our nozzles provide precise spraying results and uniform coverage. The complete range of sizes allows our nozzles to be adapted to a wide range of spraying equipment and to work well with different spraying systems.
The high melting point and excellent heat transfer properties of tungsten carbide material enable our tungsten carbide nozzles to work stably in high temperature environments. Whether you are spraying materials such as metals, ceramics, glass, etc., or in the process of spraying high-temperature molten metals, our nozzles provide excellent performance and reliable durability.
Characteristics of tungsten carbide nozzle:
1. Various spraying modes.
2. Easy to install and replace.
3. Good thermal conductivity.
4. Excellent wear and corrosion resistance.
Whether you are spraying fine or large areas, our nozzles will meet your needs and provide you with excellent spraying results.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
