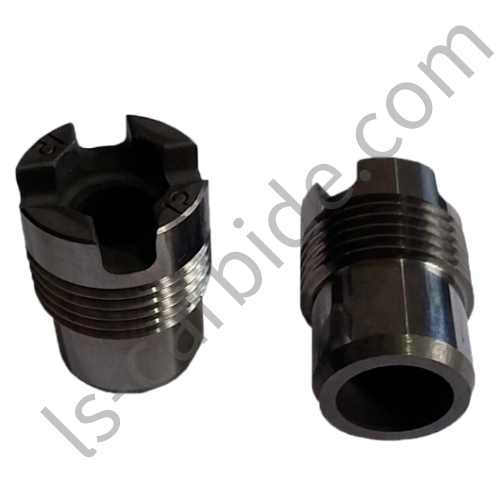

The PDC Drill Bit Nozzle is meticulously engineered using advanced materials and precision manufacturing techniques. It serves as a critical component of PDC (Polycrystalline Diamond Compact) drill bits, enabling enhanced fluid flow and optimized drilling performance. With its state-of-the-art design, this nozzle ensures efficient cooling and cleaning of the drilling interface, maximizing the lifespan and productivity of your drilling equipment.
Applications of PDC Drill Bit Nozzle：
The PDC Drill Bit Nozzle is suitable for various drilling applications, including oil and gas exploration, mining, geothermal drilling, and more. It is compatible with a wide range of PDC drill bits and can be easily integrated into your existing drilling systems.
Pros of PDC Drill Bit Nozzle:
1. Streamlined runner design
2. Effectively cool the drill bit and reduce overheating
3. Optimal nozzle configuration
4. Sturdy structure
5. Improve drilling efficiency
6. Extend equipment life
7. Save development costs
8. Stable and reliable performance
Made of high-quality materials, strict quality inspection, to give you the best shopping experience.
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
Ready to take your drilling operations to new heights? Experience the power of the PDC Drill Bit Nozzle today! Place your order now and witness the remarkable performance and efficiency it brings to your drilling endeavors.
