Material compostion:
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
Value:

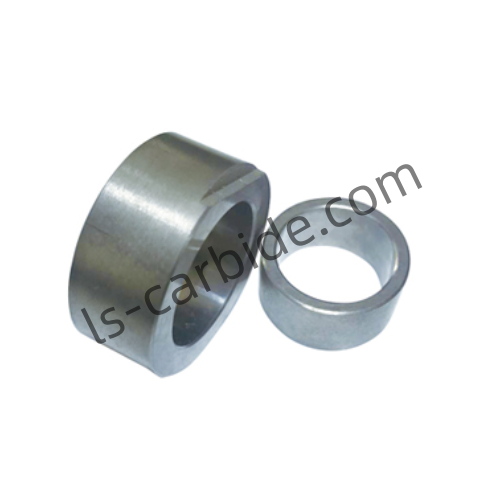

Most shaft sleeves are used around various shafts that require rotation, not only to reduce friction, but also to protect the shaft from excessive wear caused by high-speed mechanical rotation. However, there is also a part of the shaft sleeve that is widely used around the valve. As a switch for controlling liquid flow, the valve needs to have extremely strong sealing performance. If the Tungsten Carbide Bushing is placed outside the valve, it can play a good sealing role and effectively prevent liquid overflow. Not all shaft sleeve materials have excellent sealing performance and service life such as tungsten carbide. Of course, if you want Tungsten Carbide Bushing to focus on sealing and wear resistance, the requirements for different component ratios are also different.
Highlights:
1. Tungsten Carbide Bushing has good sealing and compression resistance
2. We will try our best to meet any product needs of customers
3. Professional team guides the production of each batch of tungsten carbide products
4. Timely delivery
Advantages:
As a small component, Tungsten Carbide Bushing often needs to be combined with other components to maximize its value, so it is very easy to assemble and because of its small size, it is also very convenient to handle. As a sealing component commonly used in valves, if it is to be suitable for valves in various industries, it must have excellent pressure resistance and chemical stability. The liquid in the container not only generates enormous pressure on the valve, but also may corrode the valve. Tungsten Carbide Bushing has excellent corrosion resistance and pressure resistance, with a high cost performance ratio.
Service:
If the customer is unsure which grade of material is the best, we can provide the customer with the most suitable product solution. In addition, if you have any questions after receiving the goods, please feel free to contact us.
