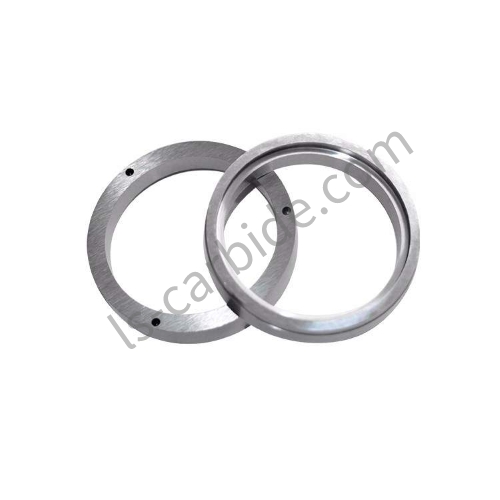

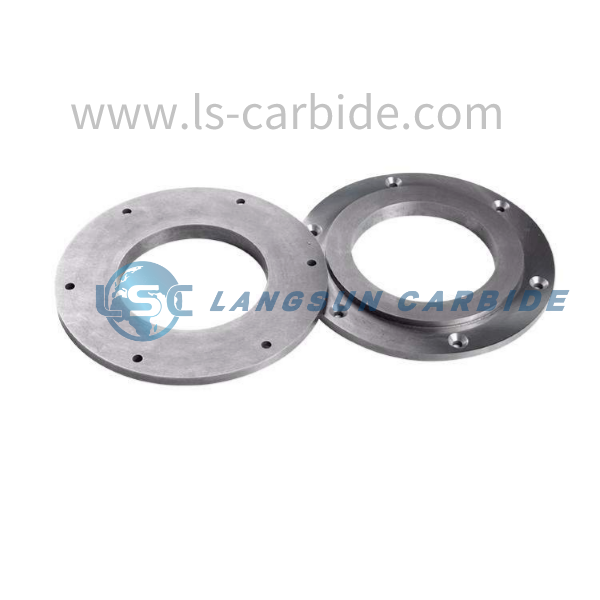

The tungsten carbide sealing ring is made of tungsten carbide powder as raw material, nickel powder or cobalt powder is added as binder, and it is pressed into a ring by mold and sintered under pressure.There is no room for error in every link, otherwise there will be deviations in size and precision.The mechanical seal ring is the most important part of the mechanical seal. The quality of the seal ring determines the service life and sealing performance of the seal to a large extent.So a good sealing ring is essential, a good sealing ring often has the following characteristics:
1.High thermal shock resistance. Does not break under thermal shock
2.The sealing ring has good self-lubricating property and small friction coefficient
3.The sealing ring should have high corrosion resistance
4.The sealing ring has high strength, and it is not easy to deform when the pressure and temperature change
Langsun Carbide has rich experience in producing tungsten carbide sealing rings, we have provided sealing rings for customers all over the world for a long time.Every link of the products we produce has strict inspection, high precision, small tolerance, stable quality and performance.Before sales, we can provide professional advice according to the products you need. After sales, if the products are damaged, we can provide you with replacement services.We have good supply capacity and punctual delivery time, many large enterprises all over the world are our customers.If you are interested in our products, please feel free to contact us, we will reply you within 24 hours.
Cobalt Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) |
YG6 | 6 | 14.8 | 90.0 | 1520 |
YG6X | 6 | 14.9 | 91.0 | 1450 |
YG6A | 6 | 14.9 | 92.0 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88.0 | 1810 |
YG15 | 15 | 14.0 | 87.0 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
Typical Tungsten Carbide Grade Mechanical Properties for Mechanical seal rings
| Grade | Main Chemical Composition（wt%） | Modulus Of Elasticity （KN/m㎡） | Compressive Strength （N/m㎡） | Thermal Conductivity （W/m-K） | Coefficient Of Thermal Expansion | ||||
| WC | Co | Ni | TiC | Mo | |||||
| YG6 | 94 | 6 | - | - | - | 630 | 5500 | 100 | 5.5×10-6/ K |
| YG8 | 92 | 8 | - | - | - | 590 | 5200 | 90 | 5.8×10-6/ K |
| YG15 | 85 | 15 | - | - | - | 530 | 4600 | 70 | 6.2×10-6/ K |
| N100 | 94 | - | 6 | - | - | 600 | 4500 | 90 | 5.3×10-6/ K |
| N200 | 92 | - | 8 | - | - | 570 | 4300 | 80 | 5.2×10-6/ K |
| TIP | 81.5 | 8.5 | 10 | - | 530 | 4700 | 70 | 5.6×10-6 /K | |
| QT200 | 25 | - | 15 | 52 | 8 | 400 | 3400 | 25 | 7.8×10-6 /K |
