Since the establishment of the station for decades, because of the excellent product quality, the proportion of customers who have cooperated with us for the second time is very large. Of course, we are also constantly developing new customers. We hope that our high-quality tungsten carbide products can help you and look forward to cooperating with you.
Material composition:
Tungsten carbide material specification
Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |

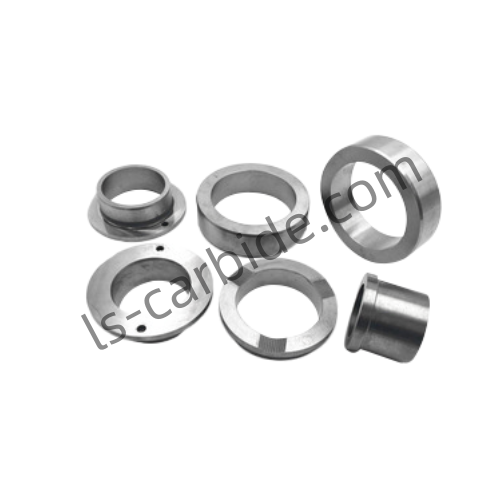

The Shaft Sleeve is widely used. In many mechanical equipment, it not only plays the role of protecting the shaft center, but also needs to control the flow in the oil and gas industry. Although in one oil and gas industry, the equipment with different functions also has different requirements for the shaft sleeve. Some equipment may need strong toughness, and some equipment may need strong hardness. If customers are not sure what grade of tungsten carbide material to use, they can consult us at any time. We will put forward the most sincere suggestions according to your needs.
Highlights:
1. The service life is much longer than other materials
2. 100% of raw materials
3. With excellent corrosion resistance, tungsten carbide can have high working efficiency in any environment
4. It can be customized for customers
Advantages:
The performance of cemented carbide is superior to other materials in terms of hardness and compressive strength. There is no doubt that the cost performance of Cemented Carbide Bushis very high, but we also know that customers will consider the price. What our company can do is to let experts strictly check the initial composition ratio to reduce the waste of raw materials caused by defective products in the final production. To ensure that the Carbide Shaft Sleeve has clearance under various working conditions to ensure the normal rotation of the shaft sleeve, our company has experienced experts in the industry, which will help you avoid this kind of thing.
Service:
If the customer is unsure which grade of material is the best, we can provide the customer with the most suitable product solution. In addition, if you have any questions after receiving the goods, please feel free to contact us.
