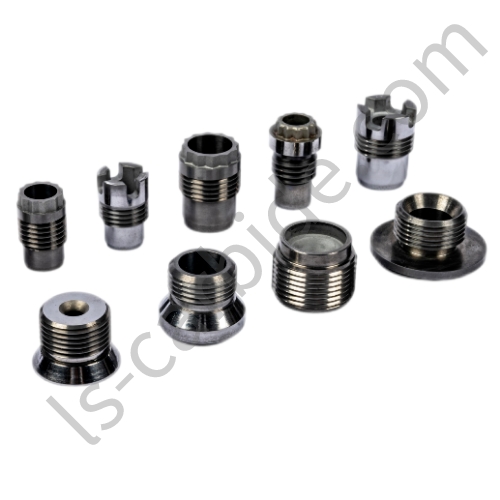

Tungsten carbide nozzles are pressed and sintered from tungsten carbide powder. Tungsten carbide nozzles are often used in applications that require high-velocity fluid or abrasive material spraying. Tungsten carbide nozzles can be used in harsh and harsh environments where abrasion and erosion occur. The use of tungsten carbide nozzles can help increase productivity, prolong the life of equipment, and improve the overall efficiency of various industrial processes involving painting, blasting or cutting.
Spraying, waterjet cutting, sand blasting and oil & gas, etc.
Features of tungsten carbide nozzles:
1. Close to the hardness of diamond
2. Excellent resistance to deformation, not easy to crack
3. Excellent thermal stability
4. Unique corrosion resistance
Choose Langsun Carbide:
1.100% high quality pure tungsten carbide raw material
2. Using HIP sintering
3. Very precise size, high precision
4. Small order accepted, sample accepted
5. Various sizes and shapes can be customized
Ningbo Langsun Tungsten Carbide Co., manufactures tungsten carbide nozzles in a variety of sizes and types. We can customize various products according to customer requirements or produce according to drawings. Wide range of nozzles for all bit designs including gas pump nozzle, air nozzle and sandblasting nozzle etc. Our tungsten carbide nozzles have been exported to the United States, Germany, Italy, Russia, South America and other countries. Tungsten carbide nozzles are of excellent quality at competitive prices.
Tungsten carbide material specification | |||||
Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
