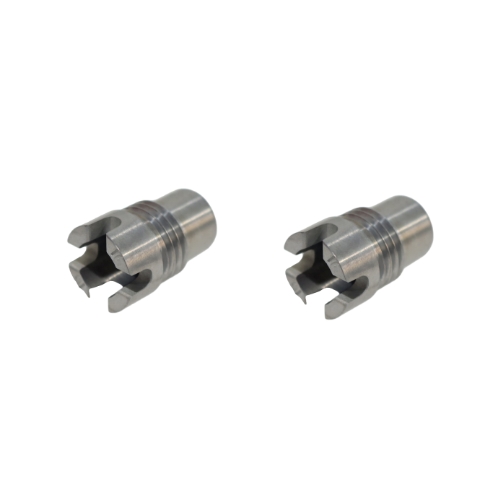

PDC carbide nozzles are an innovative and essential component for many industrial applications. These nozzles are made of a high-quality tungsten carbide material that provides exceptional strength, durability, and wear resistance.
PDC carbide nozzles are widely used in the oil and gas industry, mining, and construction, among others. These carbide nozzles are designed to withstand the harsh conditions and high-pressure environments in these industries. The high-quality tungsten carbide material used in the manufacturing process is capable of withstanding extreme temperatures and pressures, ensuring a long lifespan and optimal performance.Langsun Carbide produce lots of carbide nozzles our customers,you can browser our nozzle catalogue for more details.
Material composition:
| Tungsten carbide material specification | |||||
| Grade | Binder (Wt %)Cobalt | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YG6 | 5.8-6.3 | 14.6-15.0 | 89.5-91 | 1800 | 0.8-2.0 |
| YG6X | 5.8-6.3 | 14.4-14.7 | 90.5-91.5 | 1650 | 0.6-1.0 |
| YG8 | 7.5-8.2 | 14.4-14.7 | 89.0-90.5 | 2200 | 1.0-1.5 |
| YG11 | 11.0-11.5 | 14.2-14.4 | 87.0-88.5 | 2800 | 1.0-2.0 |
| YG11C | 11.0-11.5 | 14.2-14.4 | 86.0-88.0 | 3000 | 1.0-2.5 |
| YG15 | 14.5-15 | 13.9-14.0 | 86.0-88.0 | 3300 | 1.0-2.0 |
| YG20 | 20.0-20.5 | 13.2-13.5 | 84.0-85.0 | 3400 | 1.0-2.0 |
| YG20C | 20.0-20.5 | 13.2-13.5 | 83.0-85.0 | 3600 | 1.0-2.5 |
| K05VF | 4.5-5.0 | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6-1.0 |
| K10VF | 5.5-6.2 | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6-1.0 |
| K20VF | 7.5-8.0 | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6-1.0 |
| Grade | Binder (Wt %)Nickel | Density (g/cm3) | Hardness (HRA) | TRS (>N/mm²) | Grain Size(μm) |
| YN6 | 5.5-6.2 | 14.6-15.0 | 89.5-90.5 | 1800 | 0.8-2.0 |
| YN6X | 5.9-6.5 | 14.5-14.9 | 89.4-91 | 1750 | 0.8-1.8 |
| YN6A | 5.9-6.5 | 14.5-14.8 | 89.5-91.5 | 1850 | 0.8-1.8 |
| YN7 | 6.8-7.2 | 14.4-14.8 | 89.0-90.0 | 1900 | 0.8-1.6 |
| YN8 | 7.8-8.3 | 14.5-14.8 | 89.0-90.0 | 2200 | 0.8-2.0 |
| YN12 | 11.5-12.2 | 14.0-14.4 | 87.5-88.5 | 2600 | 0.8-2.0 |
| YN15 | 14.5-15.2 | 13.7-14.2 | 86.5-88.0 | 2800 | 0.6-1.5 |
Highlights:
Made of high-quality tungsten carbide material
Utilize polycrystalline diamond compact (PDC) technology for consistent performance
Exceptional wear resistance and ability to maintain shape and size even after prolonged use
Capable of delivering high-velocity fluid streams for efficient cleaning and surface preparation
Advantages:
Long lifespan and reduced need for frequent replacements
Improved efficiency and productivity due to consistent performance
Cost savings for businesses through reduced maintenance and replacement costs
Capable of handling extreme temperatures and pressures
Ideal for use with abrasive fluids in sandblasting and water jet cutting applications
Applications:
Oil and gas industry
Mining and construction
Metalworking and fabrication
Automotive and aerospace industries
Surface cleaning and preparation
Water and wastewater treatment
PDC tungsten carbide nozzles are a reliable and efficient solution for a wide range of industrial applications. Their exceptional strength, durability, wear resistance, and ability to maintain consistent performance make them an essential component for businesses looking to optimize their operations and reduce costs.
