Features of carbide nozzles:
1. It still has high hardness under high pressure and high temperature
2. Good wear resistance
3. Excellent corrosion resistance, suitable for extremely harsh environments
4. High precision, small tolerance
Our advantage:
1. Complete materials to meet various needs
2. 100% high-quality raw materials
3. Strict quality inspection
4. Customized service

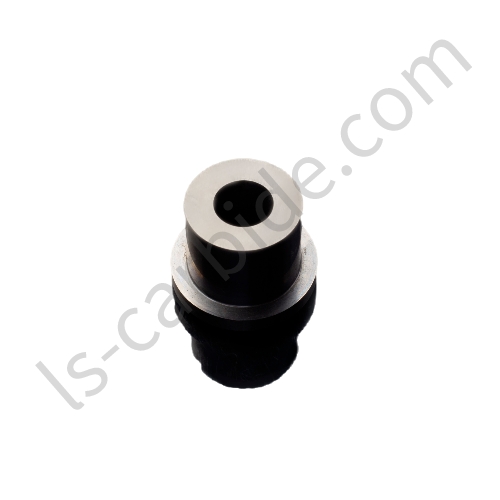

Our tungsten carbide nozzles have outstanding wear resistance and also corrosion resistance, as well as can be utilized in any extreme environment, such as oil extraction, etc. Consequently, carbide nozzles have actually ended up being the most extensively made use of nozzles in various industries. Although the manufacturing procedure of cemented carbide nozzles is reasonably made complex. However, its service life as well as performance are better than nozzles constructed from other materials.
Besides that, our tungsten carbide nozzles can stand up to deformation, high temperature as well as pressure.
If you want to know more about our tungsten carbide nozzles, please feel free to call us, and also, we will certainly reply to you in the shortest feasible time.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
