Material composition:
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |

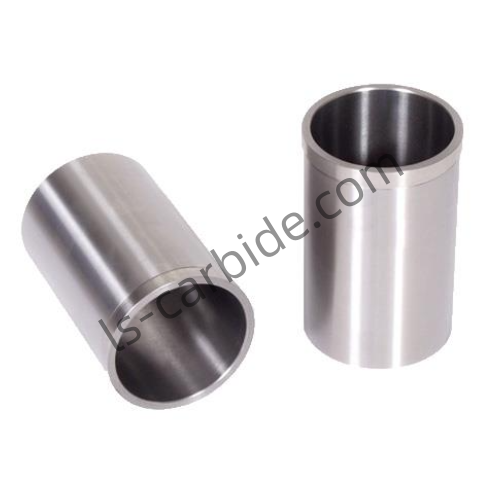

Tungsten Carbide Bush has different adhesive materials, including WC-Co alloy, WC-Ni alloy and WC-Ni/Co alloy.
Value:
The specific role of the shaft sleeve in the water pump is to protect the pump shaft and change the friction between the packing and the pump shaft into the friction between the packing and the Carbide Sleeve. Therefore, the shaft sleeve is a wearable part of the centrifugal pump. It can be seen that the wear resistance and compression resistance of the shaft sleeve must be very high, so that it can be used for a long time. Our company's products can maximize the wear resistance of the shaft sleeve through the adjustment of the adhesive proportion, Experts will also make the most suitable shaft sleeve according to the customer's design and material requirements.
Highlight:
1. High resistant wearing and excellent compression resistance
2. Provide personalized customization for each customer
3. Product quality assurance
Advantages:
Compared with products made of other materials, ourTungsten Carbide Products have excellent wear resistance and high compression resistance, which can minimize the deformation caused by rapid rotation and have high durability. If customers need personalized customization, please feel free to contact us.
Application industry：
Machinery, printing and dyeing, paper making, chemical industry, aerospace, coal, petroleum, automobile, engineering machinery, gold treatment and other industries.
Service:
If the customer is unsure which grade of material is the best, we can provide the customer with the most suitable product solution. In addition, if you have any questions after receiving the goods, please feel free to contact us.
