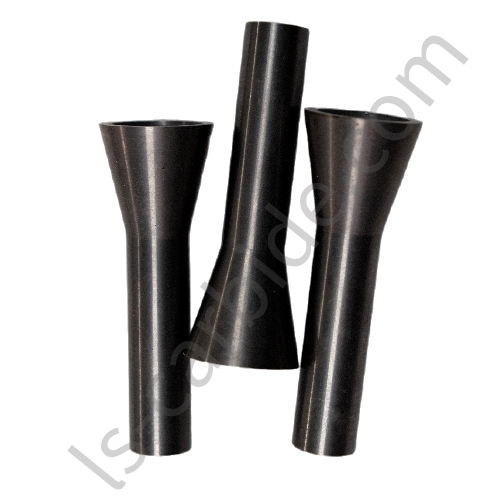

The material of the nozzle has a great influence on the service life of the nozzle. Our company chooses 100% pure tungsten carbide raw material to manufacture tungsten carbide nozzles, and the excellent abrasion resistance prolongs the service life of the nozzles.
Tungsten carbide nozzles are widely used in sand blasting, known as tungsten carbide sand blasting nozzles, and are indispensable industrial parts in oil drilling, mining, shipbuilding, etc. We believe that the use of our tungsten carbide jet nozzles can bring you higher efficiency in your application.
Features of Tungsten Carbide Nozzle:
1. Withstand the friction of abrasive media
2. Advanced surface treatment and finishing
3. Specialized customization for non-standard sizes
4. excellent mechanical properties and chemical resistance
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
