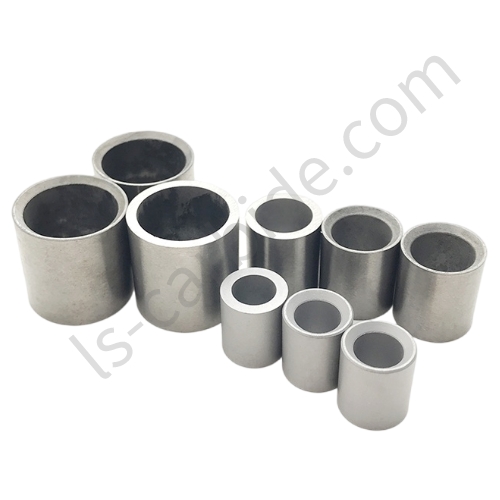

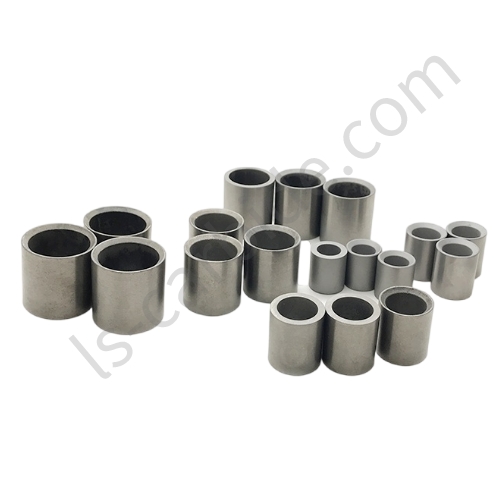

Application fields of carbide bushings:
Oil and gas, cement production, iron and steel smelting and other large-scale industrial production
Features of carbide bushings:
1. Low coefficient of friction
2. Good self-lubrication
3. Long service life, reduce maintenance cost
4. Excellent chemical stability
Our advantage:
1. Scientific and advanced process equipment
2. Using the best quality raw materials
3. Fast delivery time
4. Can be customized according to drawings
5. The quality inspection process is complete and strict
Langsun Carbide has been working in the field of tungsten carbide for decades, and has independently developed many material grades and tungsten carbide parts with better performance. The tungsten carbide bushings produced by our company have excellent performance and can be used in various harsh and extreme working environments, and the carbide bushings have a long service life, which can help you reduce the cost of replacing bushings and improve production efficiency. Our products have passed strict quality inspection and passed the ISO9001 certification, you can have full confidence in the quality of our products.
If you are interested in our tungsten carbide bushings, you can send a quotation or consultation at any time, we will have an experienced sales team and an excellent technical team to propose the most suitable solution for you.
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
